HB1105 Rubber Harris Leaf Spring Bushing
Leaf Springs & Suspension Authority Since 1965!

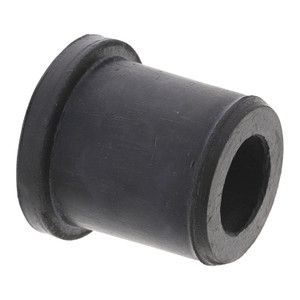

HB1105 Harris Rubber Leaf Spring Bushing

HB1105 Bushing (2 Required Per Eye)

SKU:
HB-1105
$4.99
Current Stock:
Description

HB-1105 Rubber Harris Bushing

  • 2 Required Per Eye
  • Outside Diameter (A) = 30mm (1.181")
  • Inside Flange Collar to End of Bushing Length (B) = 30mm (1.18")
  • Total Bushing Length (C) = 35mm (1.38")
  • Inside Diameter (D) = 18mm (.709")
  • Flanged Collar Diameter (E) = 36mm (1.42")
  • OEM# = 8942343190 / 94025198
  • Fits 60mm Wide Leaf Spring
  • Sold Individually

Not the bushing you need?  Click here to see all of the leaf spring bushings available

Additional Information
Outside Diamter:
30mm (1.181)
Inside Flange to End:
30mm (1.18)
Total Length:
35mm (1.38)
Inside Diameter:
18mm (.709)
Flange Diameter:
36mm (1.42)
Bushing Style:
Rubber Harris
